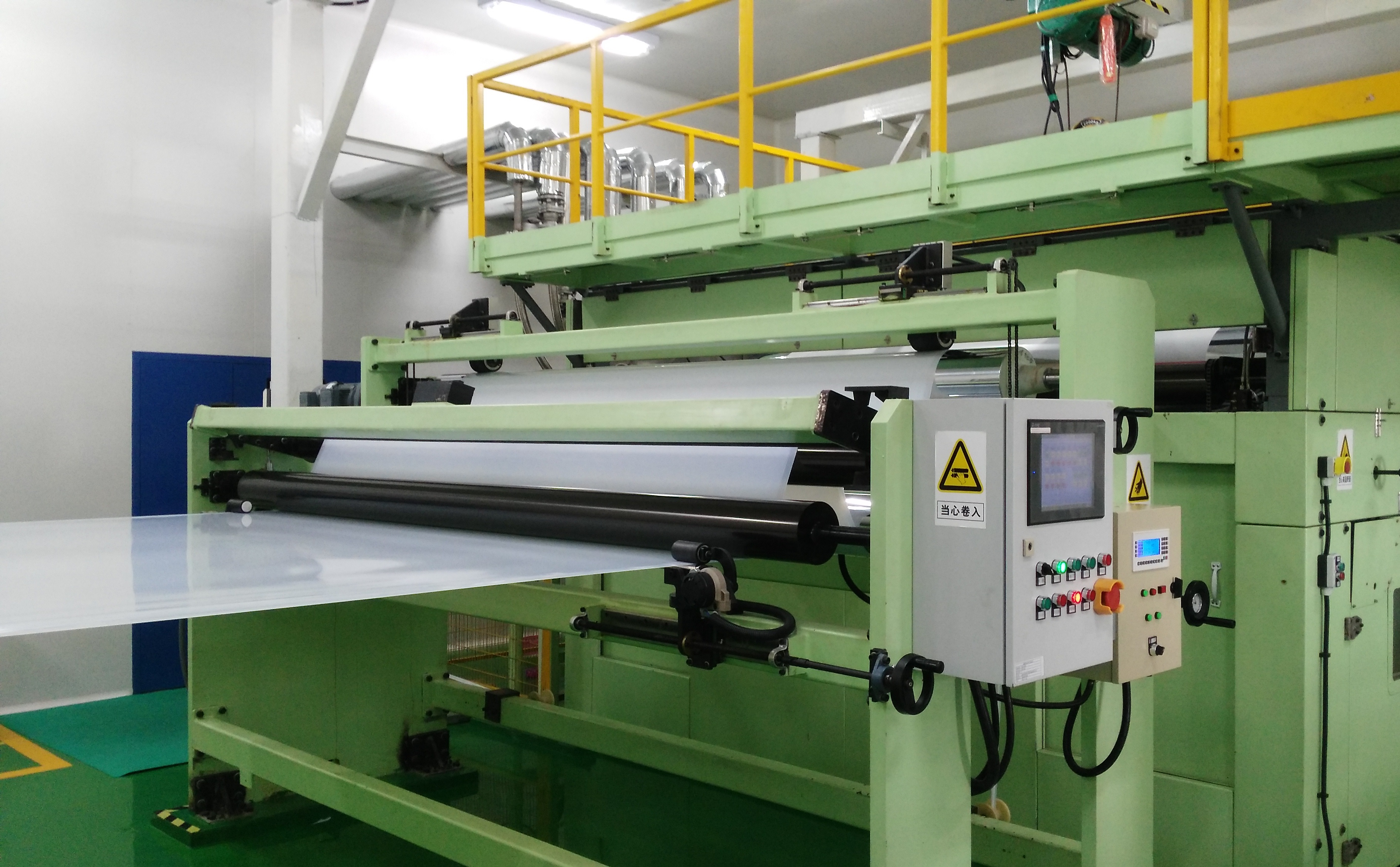

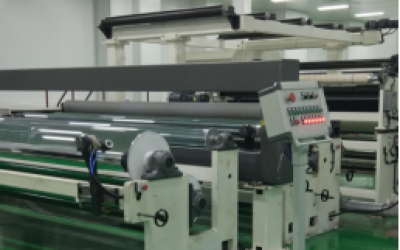

Battery Separator Film Line

name：Battery Film Line

parameter：Specification of the Line

thickness：12~25μm

width：3000mm

diameter：None

speed：100m/min

Longitudinal tensile ratio：None

Transverse tensile ratio：None

Annual output：1000T/Y

Introduction

Battery film BSF is an important component of lithium-ion batteries, battery film line consists of raw material conveying, extrusion casting machine, rolling (coating), biaxially stretching machine, ulling winding, coating, process automatic control system,etc. it is used in the production of various production technology of lithium battery separator film, including the dry/wet diaphragm, single/double diaphragm, step by step/synchronization stretching battery diaphragm, Widely used in mobile phone batteries, automotive power batteries and other fields.

Specification:

Line Type BSF1000 BSF2000 BSF3000

Film Width(mm) 1000 2000 3000

Line Speed(m/min) 100 120 150

Hole Process Dry/Wet Dry/Wet Dry/Wet

Streching Method Mono/Biaxially Streching Mono/Biaxially Streching Mono/Biaxially Streching

Streching Type Sequence/synchronization Sequence/synchronization Sequence/synchronization
