BOPP Film Production Line

name：BOPP Film Line

parameter：Technical parameters of production line

thickness：Thickness: 5~75μm

width：Width: 10400mm

diameter：Diameter: Ф1500mm

speed：Speed: 520m/min

Longitudinal tensile ratio：MDO Ratio: 1:1 - 1:8

Transverse tensile ratio：TDO Ratio: 1:7 - 1:10

Annual output：Production: 55000T/Y

Introduction

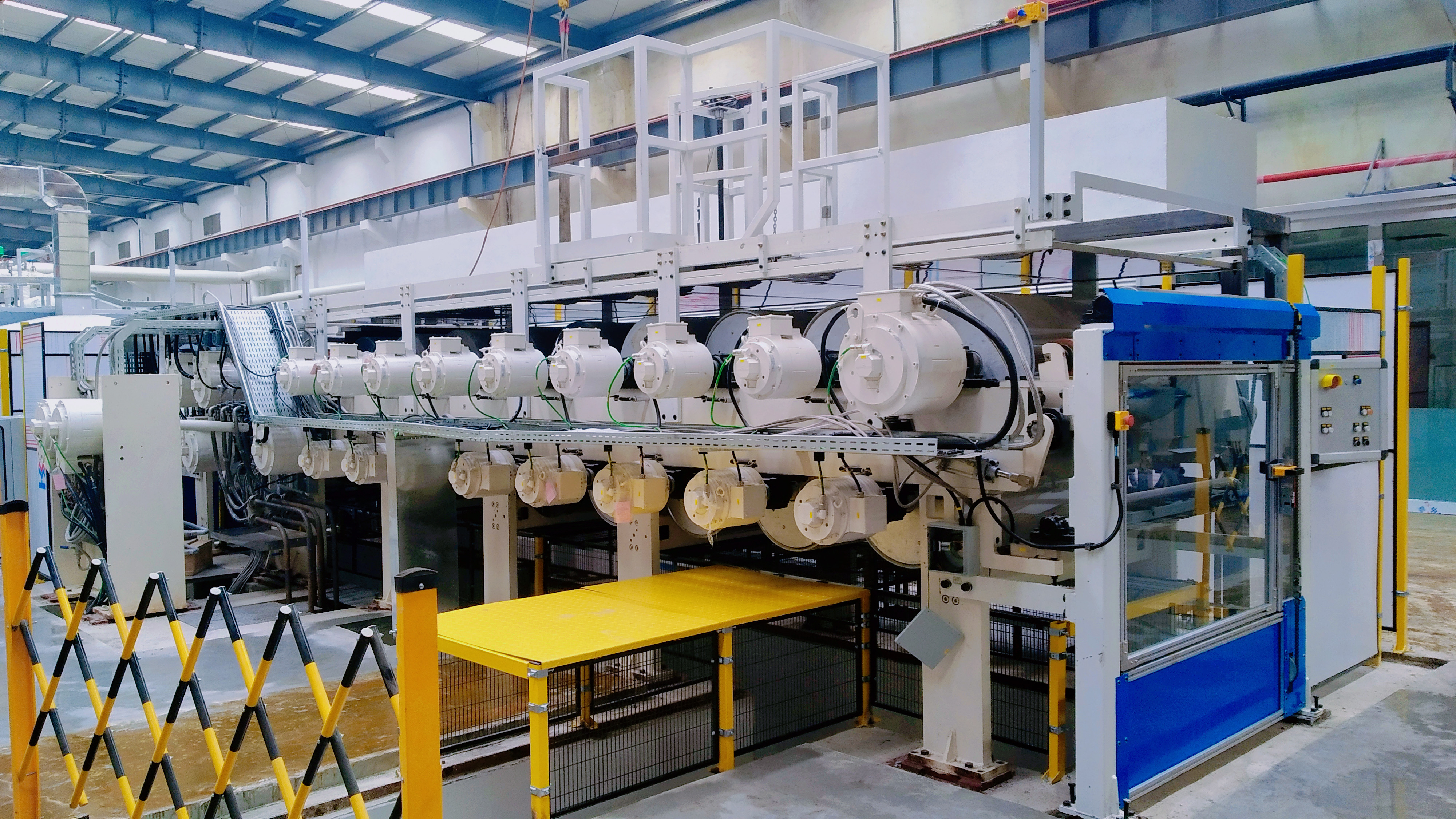

The BOPP film line is made of raw material system, extrusion casting system, biaxially stretching mahine, pull and winding system, electrical control system etc. , to produce of various specifications BOPP film with excellent mechanical properties ,electrical performance, good cold resistance of air tightness and dimensional stability , BOPP film is excellent packaging and insulation materials, widely used in food packagingOpaque cold drink packaging adhesive tape capacitor film and synthetic paper, etc.

Line Model BOPP5200 BOPP6700 BOPP8700 BOPP10400

Film Width(mm) 5200 6700 8700 10400

Product Speed(m/min) 300 350 450 520

Annual output(T/y) 10000 18000 33000 55000
