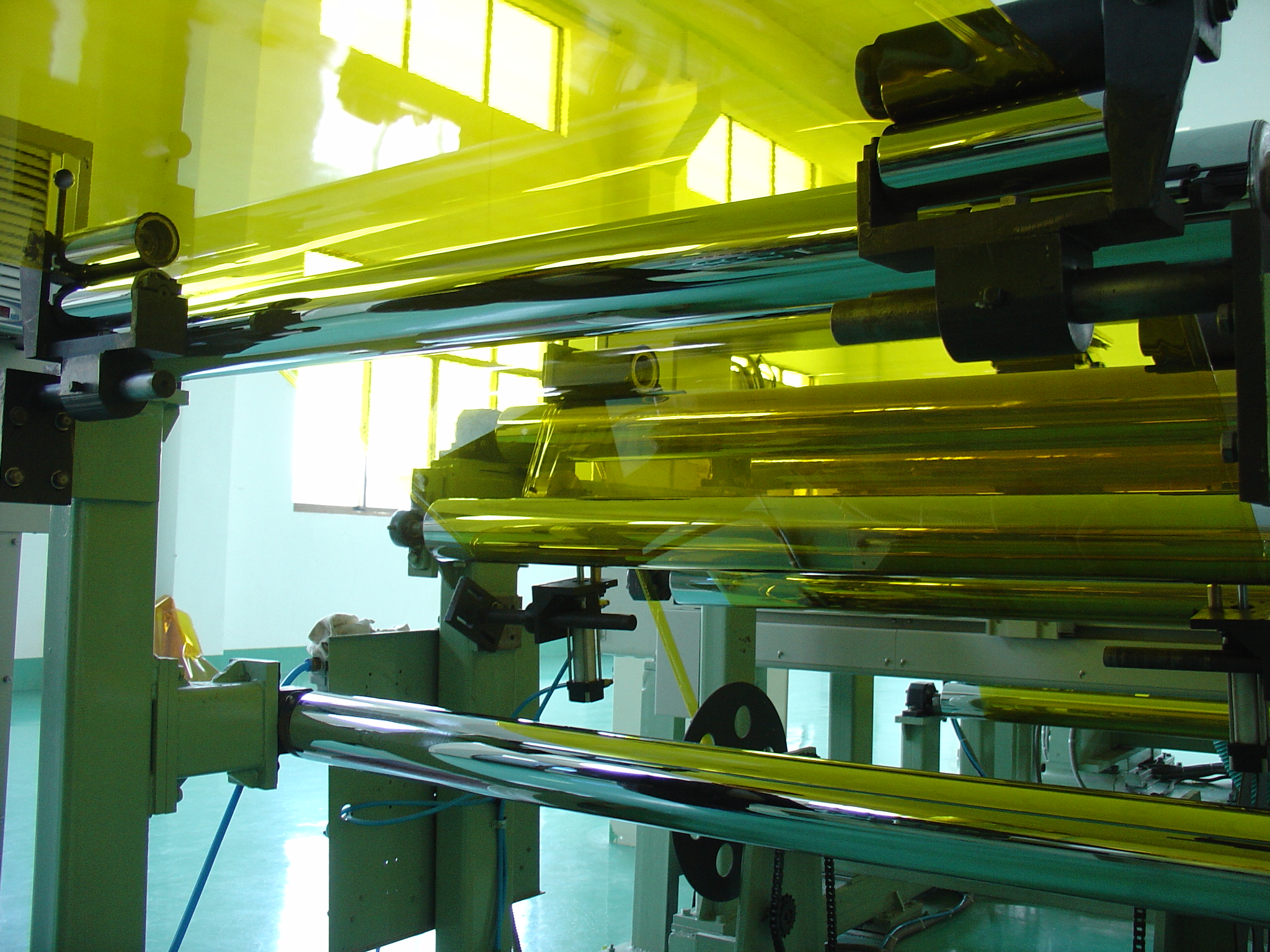

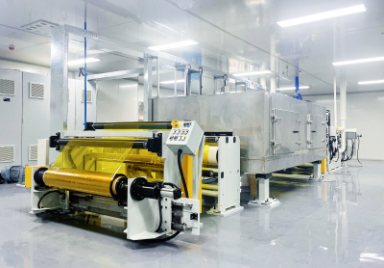

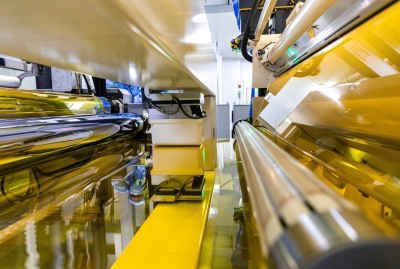

BOPI Film Production Line

name:BOPI Film Line

parameter:

thickness:5-100μm

width:2200mm

diameter:Ф500mm

speed:10m/min

Longitudinal tensile ratio:1:1 - 1:1.5

Transverse tensile ratio:1:1 - 1:1.5

Annual output:200T/Y

Introduction

It is composed of resin synthesis, casting, biaxially stretching, pulling, winding, cutting, post-treatment,automatic control system etc. .It is used to produce biaxially oriented stretching polyimide (BOPI) films with excellent electrical properties, good heat resistance, cold resistance and dimensional stability in various specifications of F and H insulation grades.BOPI film as the performance of insulation materials, widely used in locomotive traction motor, nuclear energy, aerospace and marine motor, high temperature resistant cable, with the development of high and new technology industry, has become a space, rocket technology, FCCL of flexible copper clad laminates, flexible OLED display, 5G, wearable devices in areas such as the ideal supporting material.


Line Model      BOPI600 BOPI1000 BOPI1600 BOPI2200
Film Width(mm)      600 1000  1600  2200
Product Speed(m/min) 5 8  10  10
Annual output(T/y) 30 60  100  200
